Flexible design

The PRO-515 is designed to apply pressure-sensitive labels to round containers. And, with just a tap of its one-touch screen, you can easily adjust the settings to apply labels to one side of flat-surfaced containers. The machine’s speed adjusts according to your container’s surface.

Simple to use

Machine adjustments and changeovers are quick and simple, thanks to the PRO-515’s easy-to-operate features.

Made to last

The PRO-515 is made of 304 stainless steel and anodized aluminum and carefully treated to guard against the effects of harsher environments. This durability translates into a solid choice for labeling machine longevity. In strict compliance with Good Manufacturing Practices (GMP) standards, the PRO-515 is dependable, reliable and easy to maintain.

Content_PRO-516UpgrateOption

Servo Label Head

The label applicator for the PRO-516 is powered by a servo-driven motor, which monitors and provides an instant feedback signal for fast and consistent label placement. The servo drive receives a command, amplifies the signal, and transmits electric current to the label head so that all movement is precise and efficient.

Vertical Trunnion System

The PRO-516 features a Vertical Trunnion System allowing your labels to be wrapped around cylindrical products at high rates of speed. The vertical rollers keep the product consistent and stable which stops them from tipping or shifting during the labeling process. This prevents any kind of label skewing so your products look their very best every time.

Dual 20" Unwind with Splicing Station

In order to help eliminate downtime due to roll changes, the PRO-516 features a Dual 20" Unwind with Splicing Station. This feature provides a continuous supply of labels to your applicator machine by allowing you to put two rolls of labels on the 20″ supply reels.

Screw Feed Indexing System

The PRO-516 standard machine comes with a screw feed indexing system. This design enables the machine to precisely control the indexing and spacing of each product. Precise indexing equates to higher throughput and accuracy by feeding a product to the label head immediately once it's ready for its next label cycle.

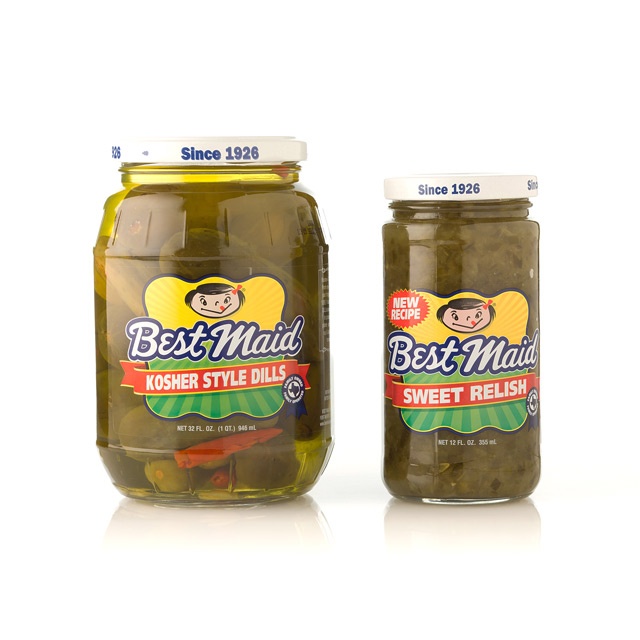

Featured Samples

Flexibility

  • With the PRO-515, labeling for a diverse range of container sizes is fast and easy. The standard one-button teach product and label sensors make it simple to adjust for various labeling applications. And, with the manual position setting, your labels are placed accurately on the product, each and every time.
  • With label heads that tilt on a 12-degree x-y axis, the PRO-515 even works well for tapered or shaped products.
  • Future upgrades are simple. Thanks to the PRO-515’s thermal or hot foil printer controls, you can easily incorporate a printer if the need should arise. This integrated feature lets printers work in sync with the labeler to ensure accurate code placement. The result? Easy label customization you can turn on or off.
  • Depending on your needs, this machine can be used for in-line automatic or semi-automatic applications.

Efficiency

  • The auto label-set feature confirms label sensitivity by detecting the separation between each label. With one push of a button, labeling is automatically set up – and positioned correctly.
  • The missing label-detect feature locates missing labels on the roll stock, and instantly shuts the machine down if one is found. This preventative feature ensures each product is labeled appropriately.

Accuracy

  • The PRO-515’s stepper motor essentially counts the “steps” necessary to reach the next label, ensuring fast, accurate label delivery
  • The auto-length set feature ensures accuracy.
  • Controls on the PRO-515 are fully synchronized, ensuring that all components run at the same speed.
  • With 360-degree touchscreen controls, the PRO-515 can be controlled from any position.

Productivity

  • A production preset function means the machine automatically stops once the predetermined quantity of products has been labeled.
  • The label count feature lets you precisely track progress at any point during the production run.
  • The container/production run counter lets you see the exact production number for the day.
  • The PRO-515 features a touchscreen control system with job memory. So, even after the machine sits idle for long periods, you benefit from a battery-free microprocessor control system that stores default settings.

Practicality

  • The PRO-515 can be easily moved to other production areas, allowing for changes in production or products.
  • Maintenance is quick and simple, thanks to slide-out controls and electronics stored in easy-to-access cabinets.
  • All Pack Leader USA labelers are made of 304 stainless steel and anodized aluminum. This extremely durable metal is specially treated to guard against rusting and other effects from harsher environments.

Compliance

  • All Pack Leader USA labelers are manufactured in compliance with Good Manufacturing Practices (GMP) standards and meet the strict ISO 9001 quality control procedures. So, you can have confidence undergoing required quarterly inspections from industry compliance auditors.

Label Type

  • Wrap Around
  • Optional One Side

Speed

  • Maximum Dispensing Speed : 131.2’ per minute (40m per minute)
  • Maximum Conveyor Speed : 72.2’ per minute (22m per minute)

Dimensions

  • Dimensions L-W-H : 96” x 58” x 55” (2438mm x 1473mm x 1397mm)
  • Maximum Label Size : 7” x 12” (178H mm x 305L mm)
  • Maximum Container Width : 7.25” (184mm)
  • Conveyor Width : 6” (160mm)
  • Conveyor Height : 33.5-35.5” (851-902mm)
  • Spool Diameter : 14” (356mm)
  • Inner Core : 3” (76mm)

Power

  • Voltage : 110/220 VAC 50/60 HZ 1 Phase
  • Power in KW : .660
  • Drive : Stepper Motor
  • Net Weight : Approx 440 lbs (200 kgs)
  • Controls : Delta Color Touch Screen
